Client Background

Client: A leading tech firm in the USA
Industry Type: IT
Products & Services: ERP Software Solutions and Back Office Services
Organization Size: 100+

The Problem

  • The client had a large, complex ERP database.
  • Business owners and leaders couldn’t directly explore or  talk to their data.
  • Insights were locked behind:
    • Static reports
    • Complex SQL queries
    • Technical teams acting as intermediaries

The client wanted to make their ERP data truly accessible to business users, in a way that felt:

  • Interactive – ask questions in plain English
  • Self-service – no need to know SQL or table structures
  • Visual – be able to see tables/charts, not just raw numbers

A need to connect the business owners with their data was required where a chatbot that sits on top of their ERP database and lets business owners ask, explore, and visualize their data in a simple, natural way would be more flexible and easier.

Our Solution

We built CLAI Data Assistant, a production-ready ERP SQL chatbot that sits between business users and the database.

Key capabilities:

  • Natural language to SQL
    • Users type questions in normal English.
    • The assistant converts them into validated SQL queries and runs them on the ERP MSSQL database.
  • Smart intent detection & routing
    • Distinguishes greetings, casual chat, vague questions, business questions, and forecasting questions.
    • Routes each message to the right engine – SQL query engine or forecasting engine.
  • Business-ready answers, not just raw tables
    • Raw query results are summarized into concise business insights (top customers, trends, balances, etc.).
    • Large result sets are handled safely and summarized instead of dumping thousands of rows.
  • Forecasting engine for “next year” questions
    • For questions like “What will my revenue be next year?” the system pulls multi-year history, structures it, and passes it to a prediction engine to produce sensible future estimates.
  • Streamed, chat-style UX
    • Answers appear in a modern chat interface with streaming responses, making the assistant feel responsive and interactive.
    • The end result is a single chat interface where business owners can explore their ERP data in real-time without touching SQL or navigating complex menus.

Solution Architecture

At a high level, the architecture has four layers:

  1. Frontend – Chat Interface (Next.js)
    • Modern React/Next.js web app with Tailwind styling.
    • Chat-style interface with message history, loading states, and space for future visualizations (tables/charts).
    • Communicates with the backend via REST APIs.
  2. Backend – FastAPI + LLM Orchestration
    • FastAPI service that exposes /chat and related endpoints.
    • Integrates with OpenAI (GPT-4o) for:
      • Intent classification (greeting vs business vs forecast)
      • SQL generation
      • Business summaries and explanations
    • Implements thread-based memory so each conversation keeps context across turns.
  3. SQL & Forecast Engines
    • LangChain SQL Agent layer
      • Uses a cached schema map of MSSQL tables and columns.
      • Smart keyword → table mapping to only expose relevant tables to the LLM (Customer, Invoice, AR, Orders, Inventory, Amazon shipment tables, etc.).
      • Strict SQL validation to allow only safe SELECT queries before execution.
    • Prediction Engine
      • Triggered only for clear future-looking questions (forecast, predict, next year, 2026+ etc.).
      • Generates structured historical SQL, then uses GPT for forecasting and explanation.
  4. Data Layer – MSSQL ERP Database
    • Read-only connection to the  existing ERP database (SQL Server).
    • Covers multiple business domains: Sales, Invoices, Orders, Customers, AR, AP, Inventory, Amazon shipments, etc.
    • No schema changes required; the assistant learns the existing schema via a schema cache.

Deliverables

  1. Fully working ERP SQL Chatbot
    • Deployed on the AWS server and accessible via browser.
    • Self-service for non-technical business users.
  2. Front-end Web Application (Next.js)
    • Chat UI with conversation history and streaming responses.
    • Ready hooks for visualizations (tables/charts) based on backend data.
  3. Backend API Service (FastAPI)
    • All endpoints required for chat, SQL execution, forecasting, and saved queries.
    • Secure connection setup with the MSSQL ERP database.
  4. Intelligent Query & Forecast Engine
    • Natural language → SQL pipeline with retry, validation and error handling.
    • Forecast module for next-year / future questions.
  5. Saved Queries Module
    • Ability to save frequently used questions and reuse them later.

Tech Stack

Tools used

  • FastAPI (backend API framework)
  • LangChain (SQL agent orchestration)
  • OpenAI Assistants API (tool calling & routing)
  • Uvicorn (ASGI server)

Language/techniques used

  • Python (backend, orchestration logic)
  • JavaScript / React / Next.js (frontend)
  • Tailwind CSS (UI styling)
  • REST APIs & JSON

Models used

  • OpenAI GPT-4o (core reasoning, SQL generation, summaries)
  • OpenAI GPT-4o-mini (fast intent classification & keyword matching to improve latency)

Skills used

  • Solution & data architecture for ERP systems
  • Secure database integration (read-only MSSQL access)
  • LLM prompt design and tool-calling workflows
  • SQL optimization and validation
  • Error handling, retries, and latency optimization
  • Frontend UX for chat-based analytics tools

Databases used

  • Microsoft SQL Server (ERP transactional database – Sales, AR, AP, Orders, Items, Inventory, Amazon tables)

Web Cloud Servers used

  • AWS Windows Server
  • Application accessed via RDP and browser using internal IP / future subdomain

What are the technical Challenges Faced during Project Execution?

  1. Converting free-form English into safe SQL
    1. Users phrase questions in many different ways, including typos and partial context.
    2. Needed to ensure the LLM does not generate unsafe or heavy queries.
  2. Choosing the right tables automatically
    1. The ERP database has many tables, including logs and system tables.
    2. Mapping user intent (“open AR”, “top customers”, “Amazon shipments”) to the correct subset of tables was non-trivial.
  3. Distinguishing between historical vs forecast questions
  4. Handling vague or conversational queries gracefully
    1. Users sometimes type “show me something” or ask general knowledge questions.
    2. The system needed to respond helpfully.
  5. Latency & user experience
    1. Calling LLMs, generating SQL, executing it on MSSQL, and then summarizing –  all within a reasonable response time..

How the Technical Challenges were Solved

  1. Strict intent classification & routing layer
    1. Implemented a dedicated intent classifier (greeting / conversational / vague / business / forecast).
    2. Only business/forecast messages reach the SQL or prediction engine, reducing mistakes and load.
  2. AI-assisted keyword → table mapping + schema cache
    1. Built a schema cache that scans all tables and filters out logs/system tables.
    2. Combined an AI keyword matcher with a curated mapping (e.g., “AR”, “aging”, “open AR” → ARDocument, ARBatchDetail, Customer).
    3. This ensured the LLM only sees relevant tables for each question.
  3. Dedicated prediction tool for future questions
    1. Registered a separate run_prediction_tool in the Assistant, with clear routing rules for future-looking questions (forecast, predict, next year, 2026+).
    2. This cleanly separated “read existing data” vs “forecast future data”.
  4. Safe SQL validation and retry logic
    1. Every generated SQL query is passed through a validation layer that blocks non-SELECT statements.
    2. If a query fails due to missing columns/tables, the system can rebuild schema cache and retry.
  5. Handling vague & conversational inputs
    1. For vague business queries (“show me data”), the assistant replies with a clarification prompt offering options (Customers, Sales, AR, etc.).
    2. For general knowledge questions, it answers briefly and reminds the user that its main role is to assist with their business data.
  6. Latency optimization
    1. Used GPT-4o-mini for lightweight tasks like intent classification and keyword matching.
    2. Cached schema and minimized context to reduce token size.
    3. Implemented streaming responses so users see answers as they are generated.

Business Impact

The assistant delivers clear value:

  • Easier Access to the users data which helps in Faster decision-making.
  • Reduced dependency on SQL skills
  • Lower risk of unsafe database access
    • All queries are read-only and automatically validated.
    • No direct SQL access is given to end users.
  • Scalable foundation for future features
    • The architecture is flexible enough to add:
      • Rich visual dashboards
      • More forecasting models
      • Multi-tenant support
      • Additional databases or modules

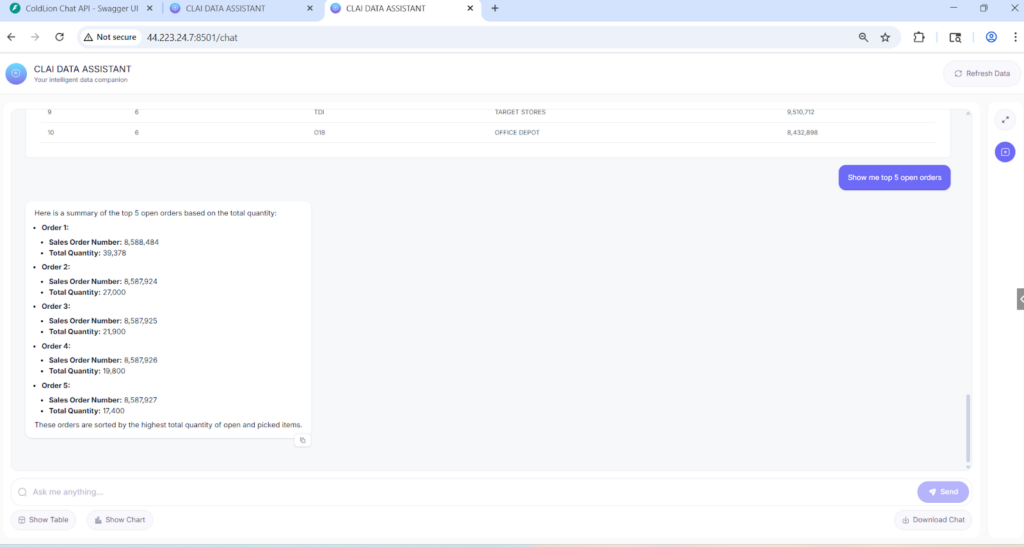

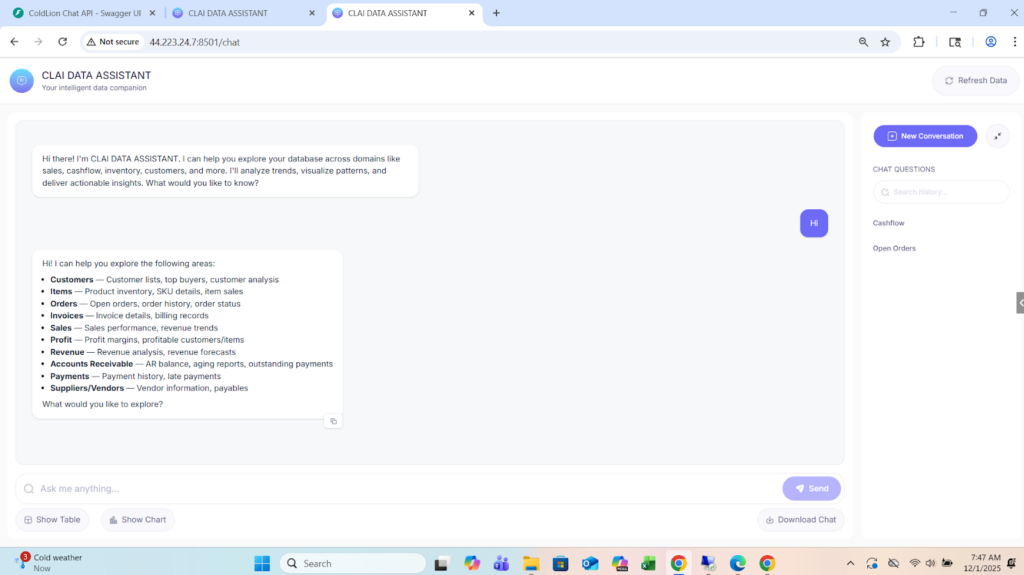

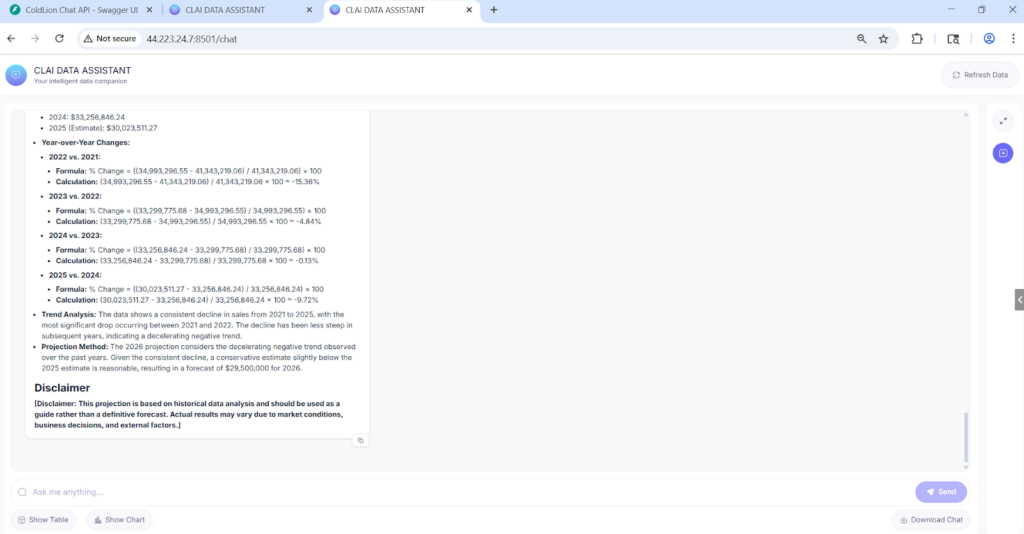

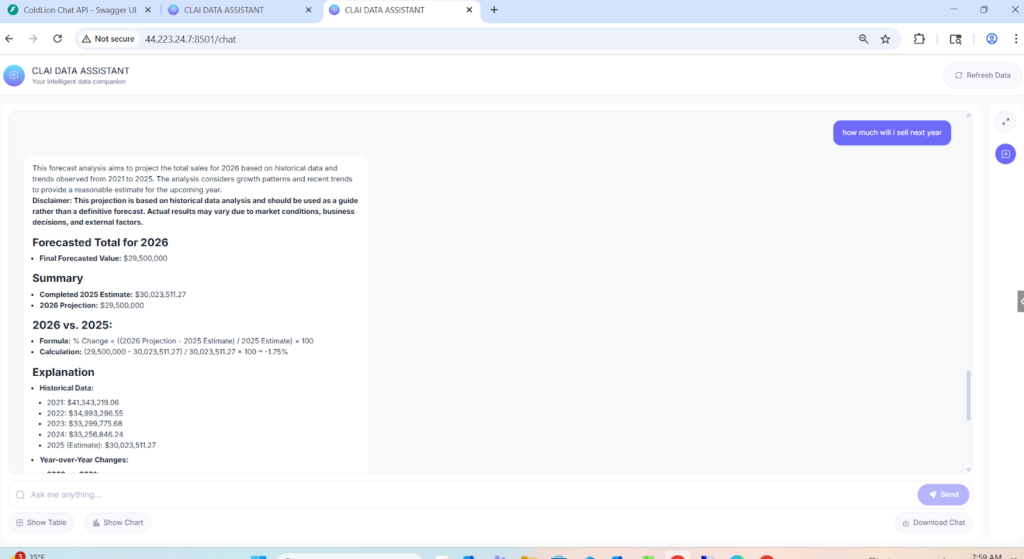

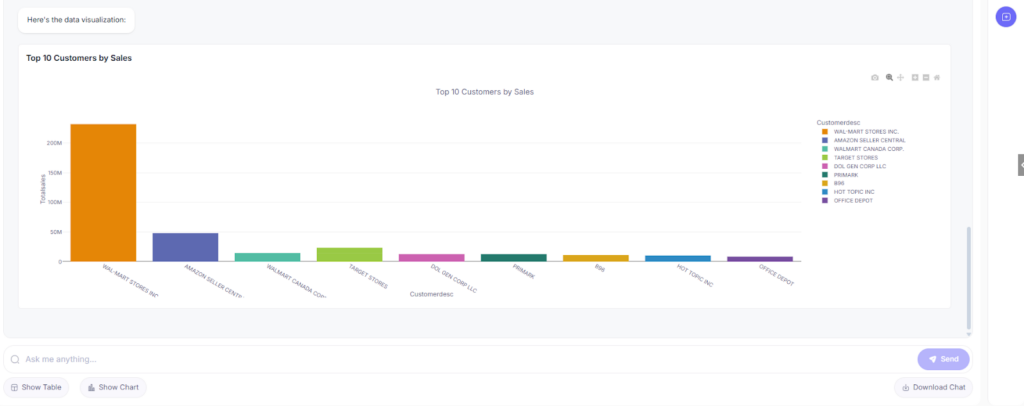

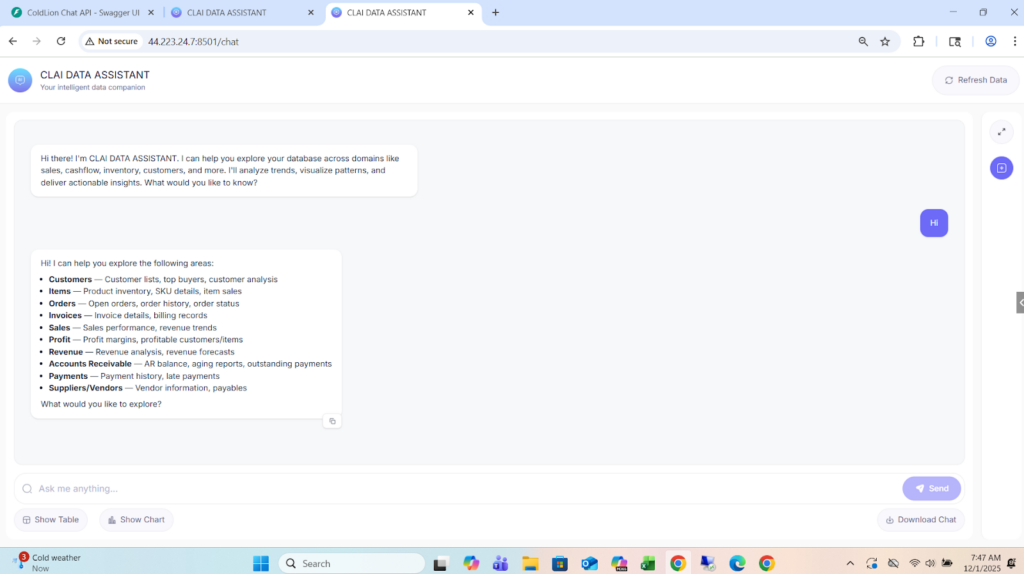

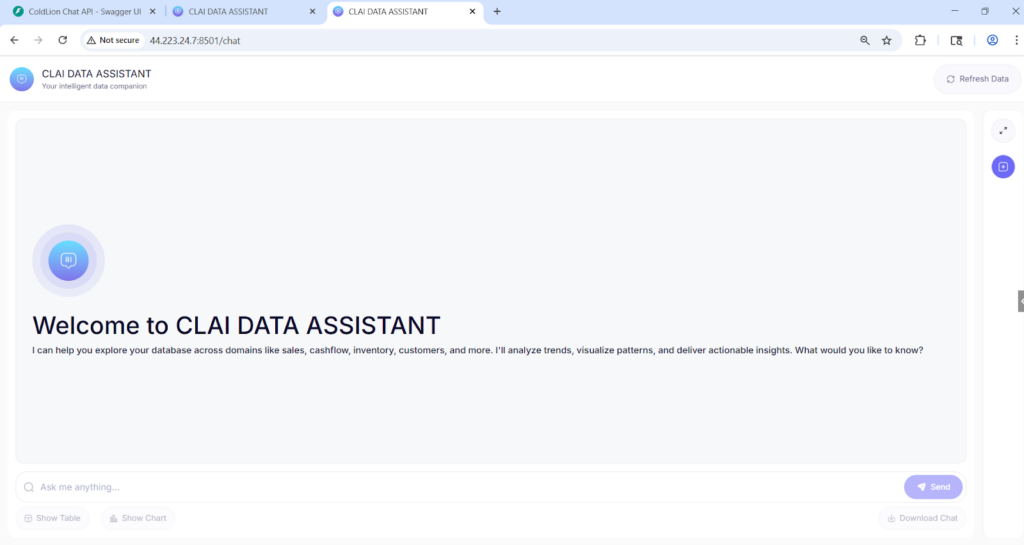

Project Snapshots:

Project Video:


URL: https://app.screencastify.com/watch/4ArjXRoqmuNBFsyHtuTt?checkOrg=417e25bd-dc0b-4f85-a09c-e9e24cf6aef2
